Model

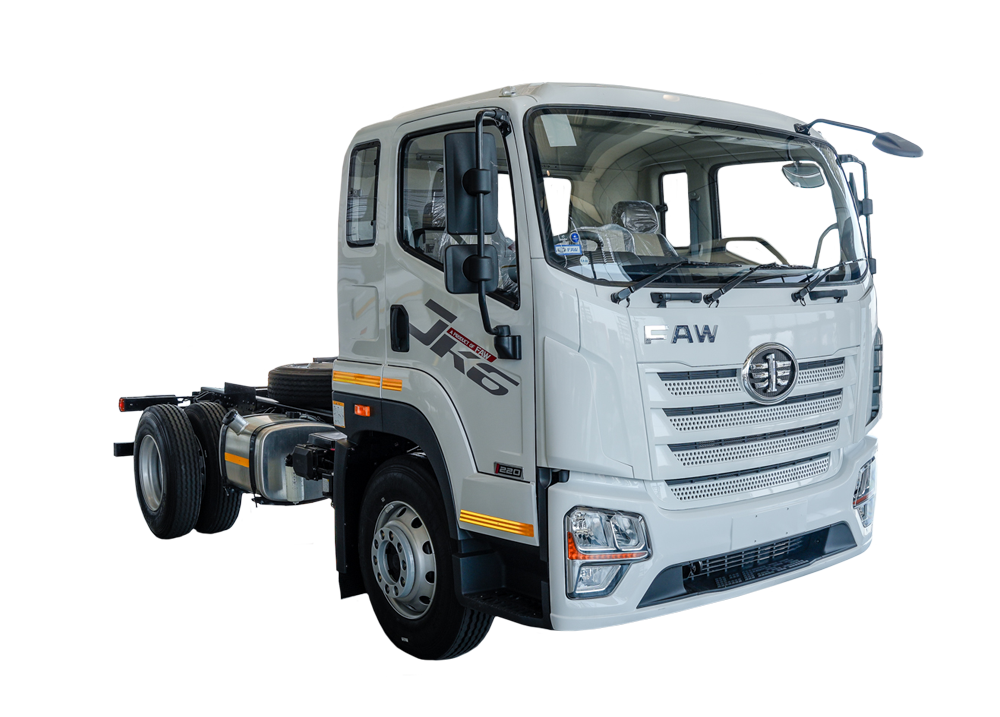

JK6 15.220 FD/FT 4×2
4x2 TIPPER/TRUCK TRACTOR
Model JK6 15.220 FD/FT
Starting at R 545,000
- Spacious Semi-Sleeper Cab
- FAW 6 Cylinder In-line Turbo Charged and Intercooled Engine
- FAW 8 Speed Fully Synchromeshed Manual Transmission
- Full Air Dual Circuit Braking System with ABS
- Standard Aircon, Radio and MP3 with USB
- Increased tyre size - 11.00 R22.5 16PR Download Spec Sheet
Discover the Highlights
Specifications
JK6 15.220 FD/FT 4×2
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 2 Passengers
Type/Extras
Semi Sleeper with Aircon, Suspension Seat
ENGINE
Make & Model
FAW BF6M2012-22E3
Capacity
6 060 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard
Euro III
Power @ r/min (Kw)
165 @ 2 500
Torque @ r.min (Nm)
770 @ 1 500
TRANSMISSION
Make & Model
FAST-8JS85TC
Type
8 Speed Manual Syncromesh
Forward Ratios
i1=7.34,i2=5.24,i3=3.76,i4=2.82,i5=1.95,i6=1.39,i7=1.00,i8=0.75
Reverse Ratio
Ir1=7.34,ir2=1.95
CLUTCH
Diameter
395 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
20.5:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 33%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
FUEL TANK
Number
One
Total Capacity
200 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Eliptical Leaf Spring with Double Acting Shock Absorbers
Rear Suspension
Semi-Eliptical Leaf Springs with Auxillary Springs
WHEELS

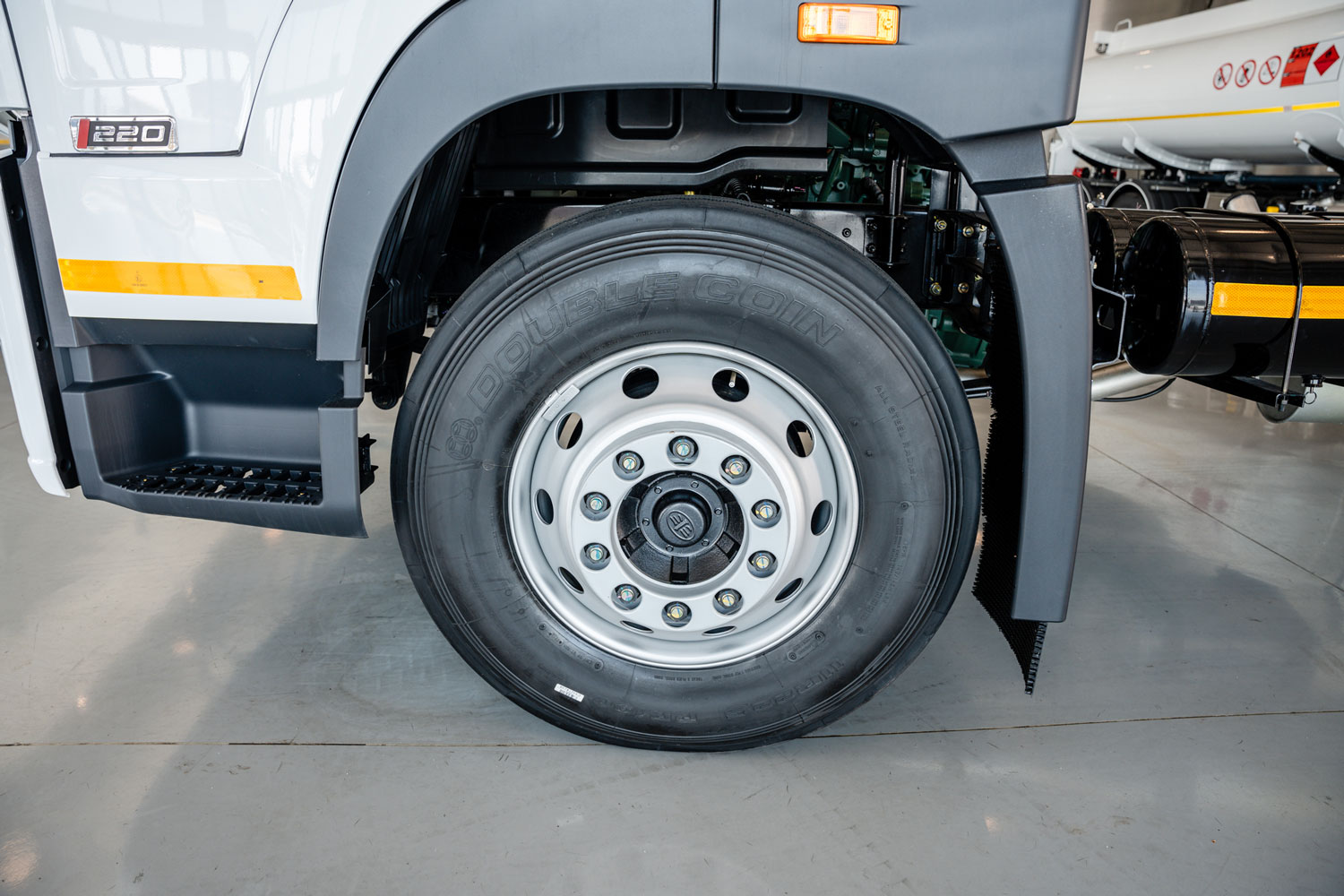

Tyre Size
11.00 R22.5 16PR
Rim Size
22.5 x 8.25
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
15 000 kg
Manufacturer’s Gross Combination Mass (GCM)
24 000 kg
Manufacturer’s Front Axle Mass (GA Front)
6 000 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
10 000 kg
Permissible Gross Vehicle Mass (V)
15 000 kg
Permissible Gross Combination Mass (D/T)
24 000 kg
Permissible Front Axle Mass (A Front)
6 000 kg
Permissible Rear Axle Mass (A Rear)
9 000 kg
Unladen Front Axle Mass (T Front)
2 950 kg
Unladen Rear Axle Mass (T Rear)
1 850 kg
Unladen Mass Total (Tare)
4 800 kg
Body and Payload Allowance
10 200 kg
DIMENSIONS
Wheelbase (WB)
3 600 mm
Overall Length (OL)
6 010 mm
Cab Length (A)
2 150 mm
Overall Width (OW)
2 380 mm
Overall Height (OH)
2 780 mm
Front Overhang (D)
1 410 mm
Rear Overhang (ROH)
1 000 mm
Cab to Rear Axle (CA)
2 900 mm
Cab to End of Chassis (F)
3 716 mm
Minimum Turning Radius
6 250 mm
Minimum Turning Diameter
12 500 mm
Ground Clearance
250 mm
Track - Front
1 950 mm
Track - Rear
1 800 mm
Chassis Outer Width
865 mm
Chassis Inner Width
715 mm
Recommended Body Length
3 716 mm
