Model

15.180 FD/FT 4×2

4x2 6m3 TIPPER & 4x2 TRUCK TRACTOR



Model 15.180 FD/FT 4×2

Starting at R 440,000

  • Spacious Ergonomically Designed Semi-Sleeper Cab
  • FAW 6 Cylinder In-line Turbo Charged and Intercooled Engine
  • FAW 6 Speed Fully Synchromeshed Manual Transmission
  • Full Air Dual Circuit WABCO Braking System with ABS
  • Standard Aircon, Radio and MP3 with USB
  • 10 Ton Body & Payload Allowance


Discover the Highlights

Retail Price

R 440,000

Fuel Economy Range

n/a

Seating

3

Engine Capacity

6.557 cm3

Transmission

6 Speed Manual Syncromesh

Fuel Type

Diesel

Download Brochure Book a Test Drive Payment Calculator


Specifications

15.180 FD/FT 4×2

CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 2 Passengers
Type/Extras
Semi Sleeper with Aircon, Suspension Seats
ENGINE
Make & Model
FAW CA6DF2-18
Capacity
6 557 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard
Euro II
Power @ r/min (Kw)
132 @ 2 300
Torque @ r.min (Nm)
650 @ 1 400 - 1 600
TRANSMISSION
Make & Model
FAW CA6TBX085
Type
6 Speed Manual Syncromesh
Forward Ratios
7.285, 4.193, 2.485, 1.563, 1.00, 0.820
Reverse Ratio
6.909
CLUTCH
Diameter
380 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
20.48:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 33%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
FUEL TANK
Number
One
Total Capacity
150 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs with Auxillary Springs
WHEELS
Tyre Size
275/70 R22.5 16PR
Rim Size
8.25 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
15 000 kg
Manufacturer’s Gross Combination Mass (GCM)
24 000 kg
Manufacturer’s Front Axle Mass (GA Front)
5 500 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
9 500 kg
Permissible Gross Vehicle Mass (V)
14 500 kg
Permissible Gross Combination Mass (D/T)
24 000 kg
Permissible Front Axle Mass (A Front)
5 500 kg
Permissible Rear Axle Mass (A Rear)
9 000 kg
Unladen Rear Axle Mass (T Rear)
1 620 kg
Unladen Mass Total (Tare)
4 120 kg
Body and Payload Allowance
10 380 kg
DIMENSIONS
Wheelbase (WB)
3 510 mm
Overall Length (OL)
5 822 mm
Cab Length (A)
2 052 mm
Overall Width (OW)
2 468 mm
Overall Height (OH)
2 670 mm
Front Overhang (D)
1 312 mm
Rear Overhang (ROH)
1 000 mm
Cab to Rear Axle (CA)
2 770 mm
Recommended Body Length
3 528 mm
Cab to End of Chassis (F)
3 770 mm
Minimum Turning Radius
7 100 mm
Minimum Turning Diameter
14 200 mm
Ground Clearance
250 mm
Track - Front
1 795 mm
Track - Rear
1 860 mm
Chassis Outer Width
865 mm
Chassis Inner Width
680 mm

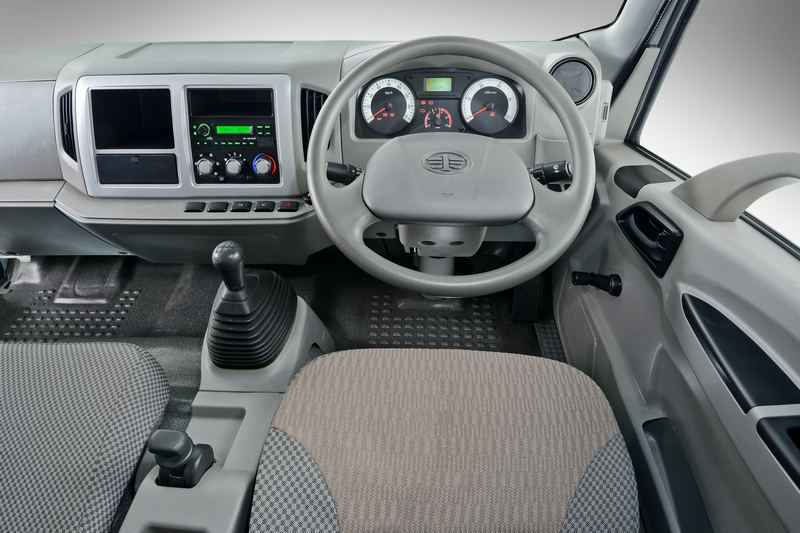

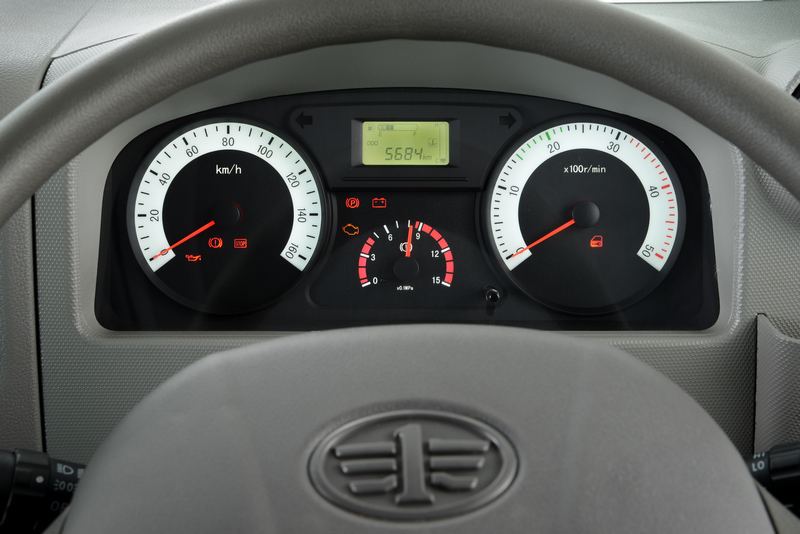

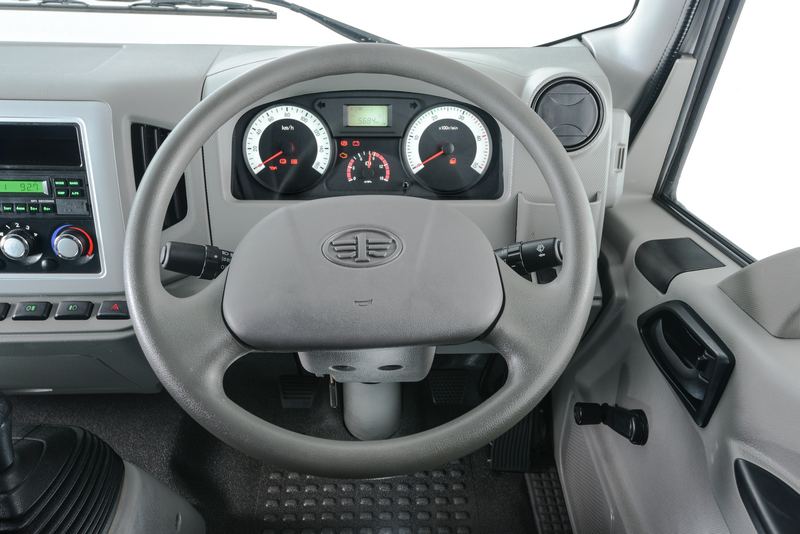

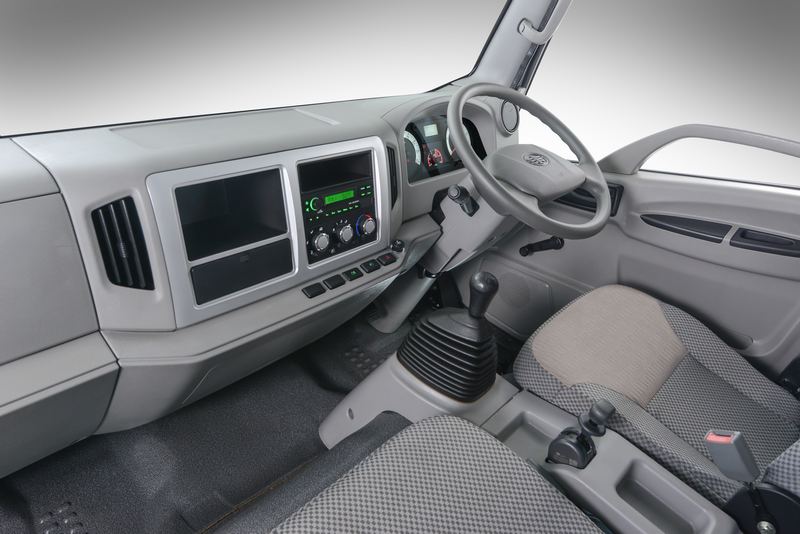

Gallery
