Model

J5N 28.290FL

FREIGHT CARRIER



Model J5N 28.290FL

Starting at R 974,000

  • 21m3 Refuse Compactor with Bin Lifters
  • Full Floating Ergonomically Designed Sleeper Cab with Reinforced Bumper
  • Weichai WP10 6 Cylinder In Line Turbo Charged and Intercooled Diesel Engine
  • FAW 9 Speed Fully Synchromeshed Manual Transmission
  • Full Air Dual Circuit WABCO
  • Braking System with ABS Standard Aircon, Radio and MP3 with USB


Discover the Highlights

Retail Price

R 974,000

Fuel Economy Range

n/a

Seating

2

Engine Capacity

9, 726 cm3

Transmission

Manual

Fuel Type

Diesel

Download Brochure Book a Test Drive Payment Calculator


Specifications

J5N 28.290FL

CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras
Semi Sleeper with Aircon, Radio with USB, Suspension Seat
ENGINE
Make & Model
WP10.290E32
Capacity
9 726 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Power @ r/min (Kw)
213 @ 2 200rpm
Torque @ r.min (Nm)
1 160 @ 1 200 - 1 600
TRANSMISSION
Make & Model
FAW CA9TB160M
Type
9 Speed Manual Syncromesh
Forward Ratios
14.34; 10.04; 7.10; 5.05; 3.71; 2.70; 1.92; 1.36; 1.0
Reverse Ratio
8.63
CLUTCH
Diameter
430 mm
Type
Single Plate
Operation
Power Assisted
STEERING
Gear Ratio
23:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 27%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Single Reduction
Rear Axle Ratio
4.1:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brake/Rear Booster
FUEL TANK
Number
One
Total Capacity
400 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Spring with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs
WHEELS
Tyre Size
315/80R22.5-18PR
Rim Size
9.00 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
28 000 kg
Manufacturer’s Gross Combination Mass (GCM)
50 000 kg
Manufacturer’s Front Axle Mass (GA Front)
7 000 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
23 300 kg
Permissible Gross Vehicle Mass (V)
25 700 kg
Permissible Gross Combination Mass (D/T)
50 000 kg
Permissible Front Axle Mass (A Front)
7 700 kg
Permissible Rear Axle Mass (A Rear)
18 000 kg
Unladen Rear Axle Mass (T Front)
4 480 kg
Unladen Rear Axle Mass (T Rear)
12 460 kg
Unladen Mass Total (Tare)
16 940 kg
Body and Payload Allowance
8 769 kg
DIMENSIONS
Wheelbase (WB)
5 100 mm+ 1 350 mm
Overall Length (OL)
10 389 mm
Cab Length (A)
2 325 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
3 341 mm
Front Overhang (D)
1 375 mm
Rear Overhang (ROH)
2 521 mm
Cab to Rear Axle (CA)
7 825 mm
Recommended Body Length
7 600 mm
Cab to End of Chassis (F)
7 810 mm
Minimum Turning Radius
10 000 mm
Minimum Turning Diameter
20 000 mm
Ground Clearance
300 mm
Track - Front
2 050 mm
Track - Rear
1 847 mm
Chassis Outer Width
865 mm
Chassis Inner Width
640 mm
Body Specification
Description
21m³ Refuse Compactor (Complete)
Bin Lift Capacity
2 x 240L or 1 x 660L
Crew Seating
4
Reverse Camera withScreen
Yes
Body Volume (m³)
Yes
Filler Volume (m³)
2.2
Body thickness
Floor 5mm, Side 4mm, Ceiling 3mm
Filler thickness
Floor 6mm, Side 4mm
Cycle Time
Filling ≤25 seconds
Lifting Time
Filler 8-10 seconds
Discharging Time
10 000 mm
Minimum Turning Diameter
≤40 seconds
Compression Force
≤25 000kg

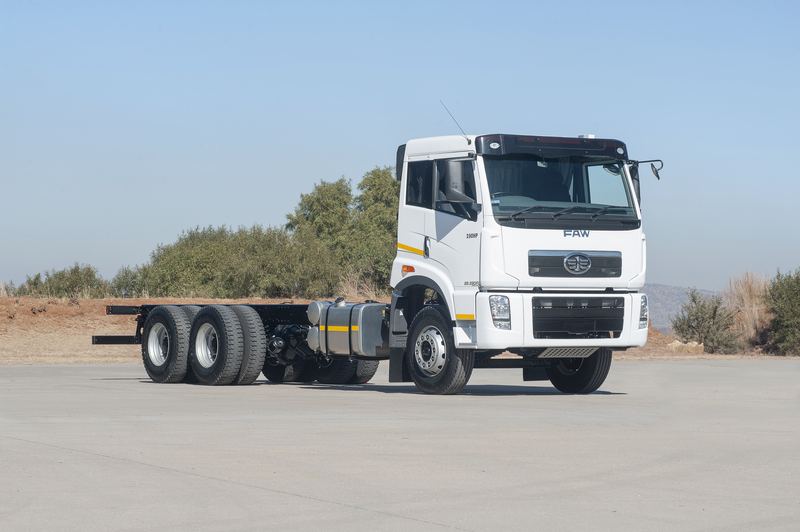

Gallery
