Model
J5N 33.340FC

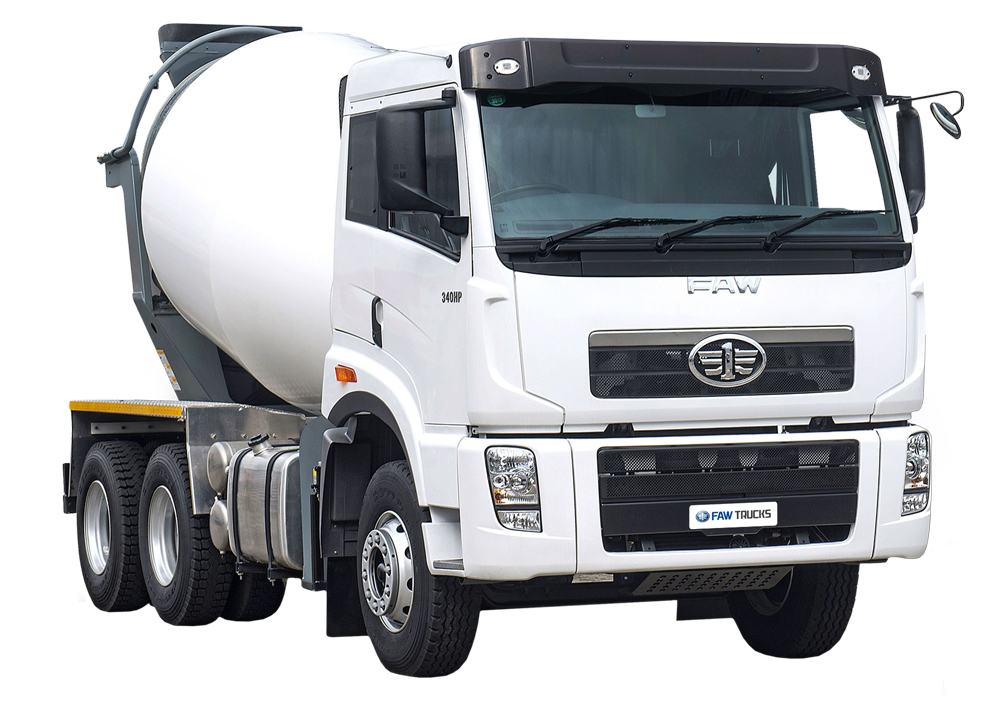

COMPLETE 6m3 MIXER
Model J5N 33.340FC
Starting at R 1,249,000
- Full Floating Ergonomically Designed Sleeper Cab with Reinforced Bumper
- Weichai WP10 6 Cylinder In Line Turbo Charged and Intercooled Diesel Engine
- FAW 9 Speed Fully Synchromeshed Manual Transmission
- Full Air Dual Circuit WABCO Braking System with ABS
- Standard Aircon, Radio and MP3 with USB
- 6m3 Mixer Body- Durable 4/750GJ material body with alumium water tank
Discover the Highlights
Specifications
J5N 33.340FC
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras
Sleeper Cab with Aircon, Radio with USB, Suspension seat
ENGINE
Make & Model
WP10.340E32
Capacity
9 726 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Power @ r/min (Kw)
250 @ 2 200rpm
Torque @ r.min (Nm)
1 350 @ 1 200 - 1 600
TRANSMISSION
Make & Model
FAW CA9TB160M
Type
9 Speed Manual Syncromesh
Forward Ratios
14.34; 10.04; 7.10; 5.05; 3.71; 2.70; 1.92; 1.36; 1.0
Reverse Ratio
8.63
CLUTCH
Diameter
430 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
23:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 36%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Single reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brake/Rear Booster
FUEL TANK
Number
One
Total Capacity
400 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Spring with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs
WHEELS
Tyre Size
315/80R22.5-18PR
Rim Size
9.00 X 22.5
Type
Tubeless Radial
Body Specifications
Description
6m³ Mixer (Complete)
Material
4/750GJ Material body with aluminum alloy water tank
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
33 000 kg
Manufacturer’s Gross Combination Mass (GCM)
45 000 kg
Manufacturer’s Front Axle Mass (GA Front)
7 700 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
25 300 kg
Permissible Gross Vehicle Mass (V)
25 700 kg
Permissible Gross Combination Mass (D/T)
45 000 kg
Permissible Front Axle Mass (A Front)
7 700 kg
Permissible Rear Axle Mass (A Rear)
18 000 kg
Unladen Rear Axle Mass (T Front)
4 360 kg
Unladen Rear Axle Mass (T Rear)
7 300 kg
Unladen Mass Total (Tare)
11 660 kg
DIMENSIONS
Wheelbase (WB)
3 500 mm + 1 350 mm
Overall Length (OL)
7 125 mm
Cab Length (A)
2 325 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
3 075 mm
Front Overhang (D)
1 375 mm
Rear Overhang (ROH)
900 mm
Cab to Rear Axle (CA)
4 100 mm
Cab to End of Chassis (F)
5 010 mm
Minimum Turning Radius
9 500 mm
Minimum Turning Diameter
19 000 mm
Ground Clearance
300 mm
Track - Front
1 914 mm
Track - Rear
1 847 mm
Chassis Outer Width
800 mm
Chassis Inner Width
640 mm
