Model

J5N 28.380FT

6x4 TRUCK TRACTOR



Model J5N 28.380 FT

Starting at R 969,000

  • 21m3 Refuse Compactor with Bin Lifters
  • Full Floating Ergonomically Designed Sleeper Cab with Reinforced Bumper
  • Weichai WP10 6 Cylinder In Line Turbo Charged and Intercooled Diesel Engine
  • FAW 9 Speed Fully Synchromeshed Manual Transmission
  • Full Air Dual Circuit WABCO Braking System with ABS Standard Aircon, Radio and MP3 with USB
  • Exceptional Fuel Consumption Proven on African Terrain


Discover the Highlights

Retail Price

R 969,000

Fuel Economy Range

n/a

Seating

2

Engine Capacity

9, 726 cm3

Transmission

Manual

Fuel Type

Diesel

Download Brochure Book a Test Drive Payment Calculator


Specifications

J5N 28.380FT 6×4

CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras
Sleeper Cab with Aircon, Radio with USB, Suspension seat
ENGINE
Make & Model
WP10.380E32
Capacity
9 726 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Power @ r/min (Kw)
280 @ 2 200rpm
Torque @ r.min (Nm)
1 460 @ 1 200 - 1 600
TRANSMISSION
Make & Model
FAW CA9TB160M
Type
9 Speed Manual Syncromesh
Forward Ratios
14.34; 10.04; 7.10; 5.05; 3.71; 2.70; 1.92; 1.36; 1.0
Reverse Ratio
8.63
CLUTCH
Diameter
430 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
23:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 32%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Full Floating- Single Reduction
Rear Axle Ratio
4.1:1
BRAKES
System Type
Full Air-Dual Circuit
Park/Emergency System
Spring Brake/Rear Booster
Auxiliary Braking system
Exhaust Brake – EVB
FUEL TANK
Number
One
Total Capacity
600 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Spring with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs
WHEELS
Tyre Size
315/80R22.5-18PR
Rim Size
9.00 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
33 700 kg
Manufacturer’s Gross Combination Mass (GCM)
62 200 kg
Manufacturer’s Front Axle Mass (GA Front)
7 700 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
26 000 kg
Permissible Gross Vehicle Mass (V)
25 700 kg
Permissible Gross Combination Mass (D/T)
56 000 kg
Permissible Front Axle Mass (A Front)
7 700 kg
Permissible Rear Axle Mass (A Rear)
18 000 kg
Unladen Rear Axle Mass (T Front)
4 380 kg
Unladen Rear Axle Mass (T Rear)
4 220 kg
Unladen Mass Total (Tare)
8 600 kg
DIMENSIONS
Wheelbase (WB)
3 150 mm+ 1 350 mm
Overall Length (OL)
6 793 mm
Cab Length (A)
2 325 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
3 075 mm
Front Overhang (D)
1 493 mm
Rear Overhang (ROH)
800 mm
Cab to Rear Axle (CA)
3 240 mm
Cab to End of Chassis (F)
4 800 mm
Minimum Turning Radius
6 500 mm
Minimum Turning Diameter
13 000 mm
Ground Clearance
256 mm
Track - Front
2 020 mm
Track - Rear
1 830 mm
Chassis Outer Width
800 mm
Chassis Inner Width
640 mm

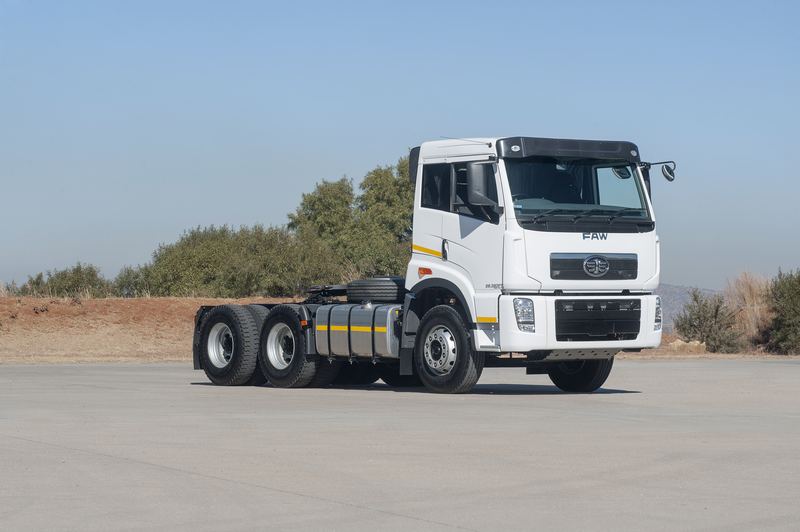

Gallery
