Model

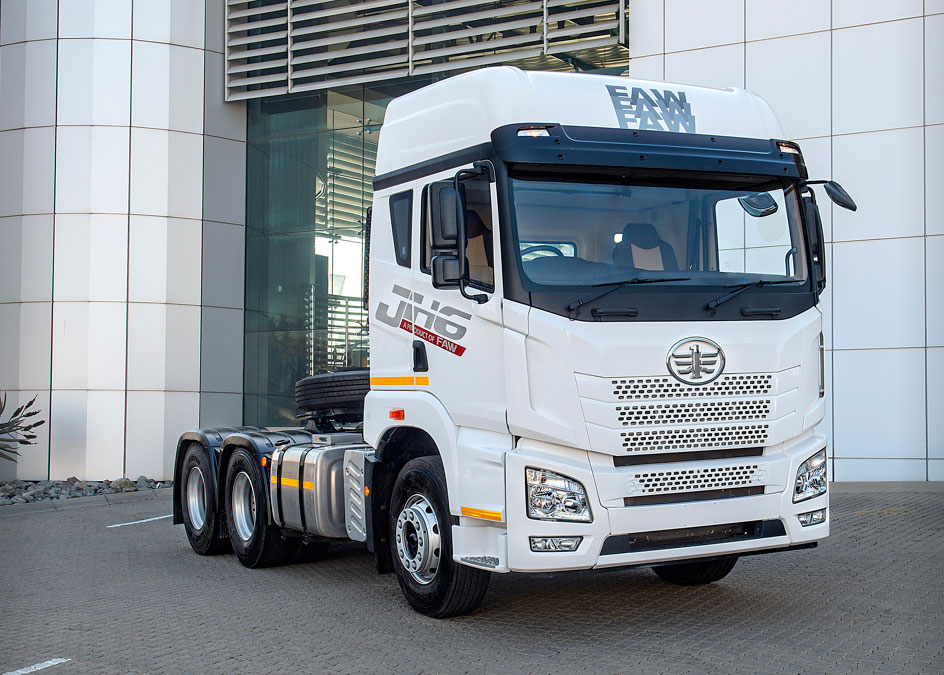

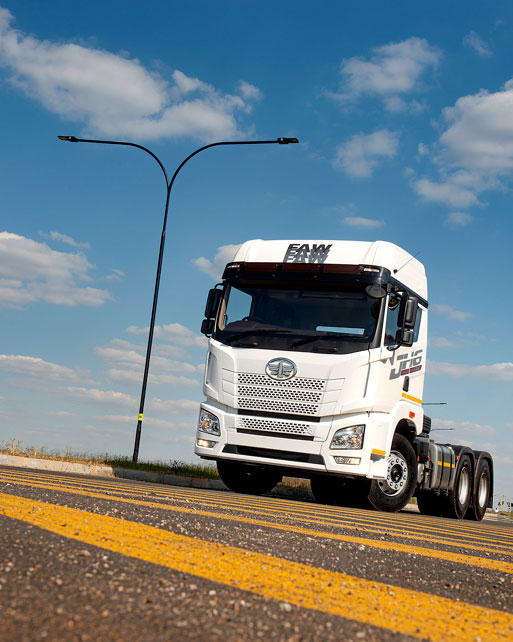

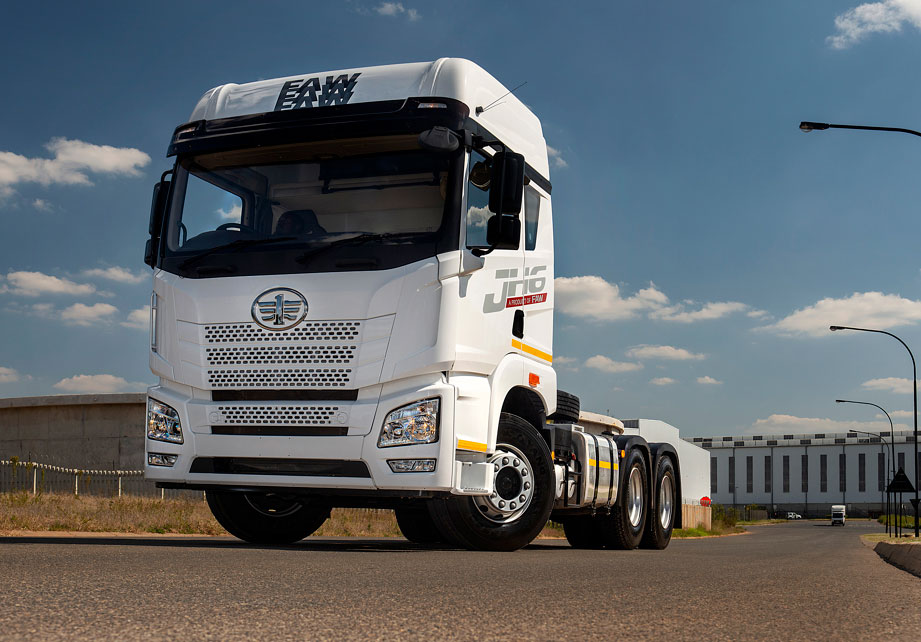

JH6 33.460 FT AMT

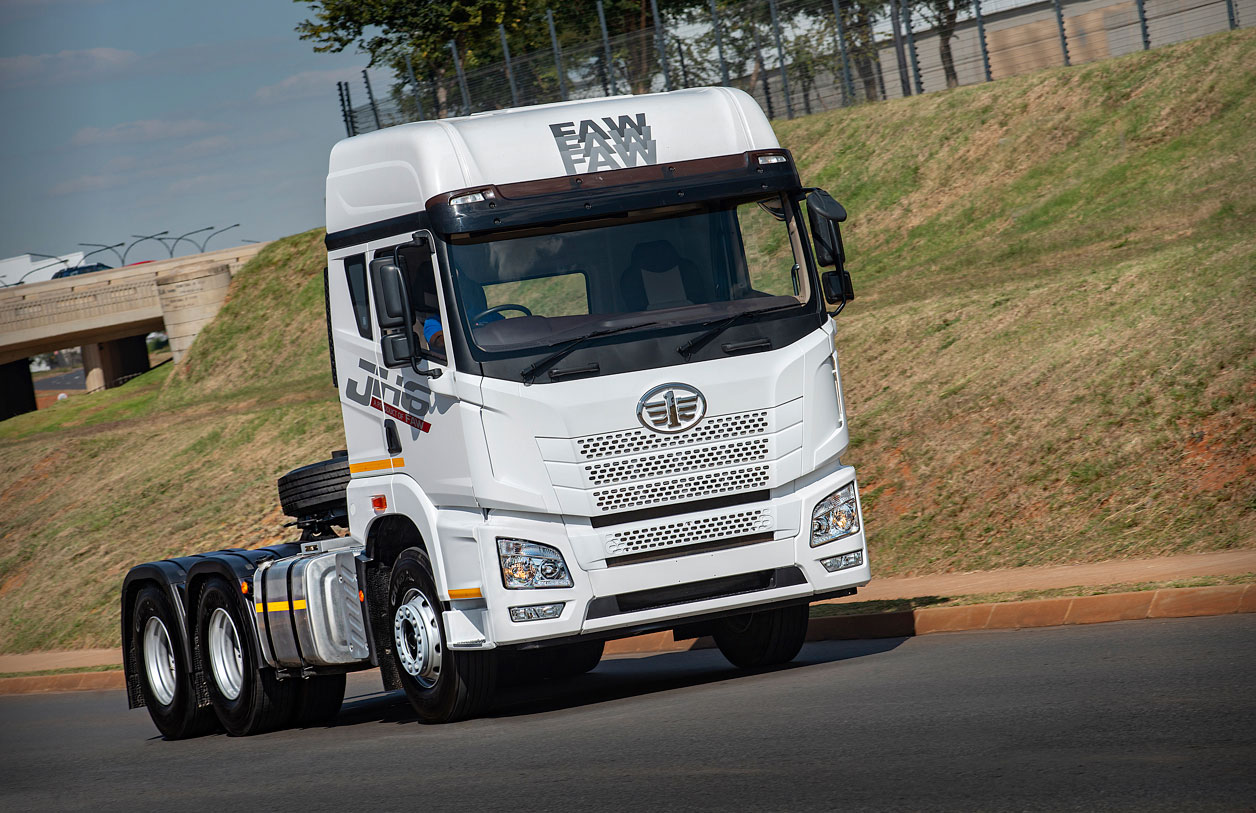

6x4 AMT TRUCK TRACTOR
Model JH6 33.460 FT AMT
Starting at R 1,500,000

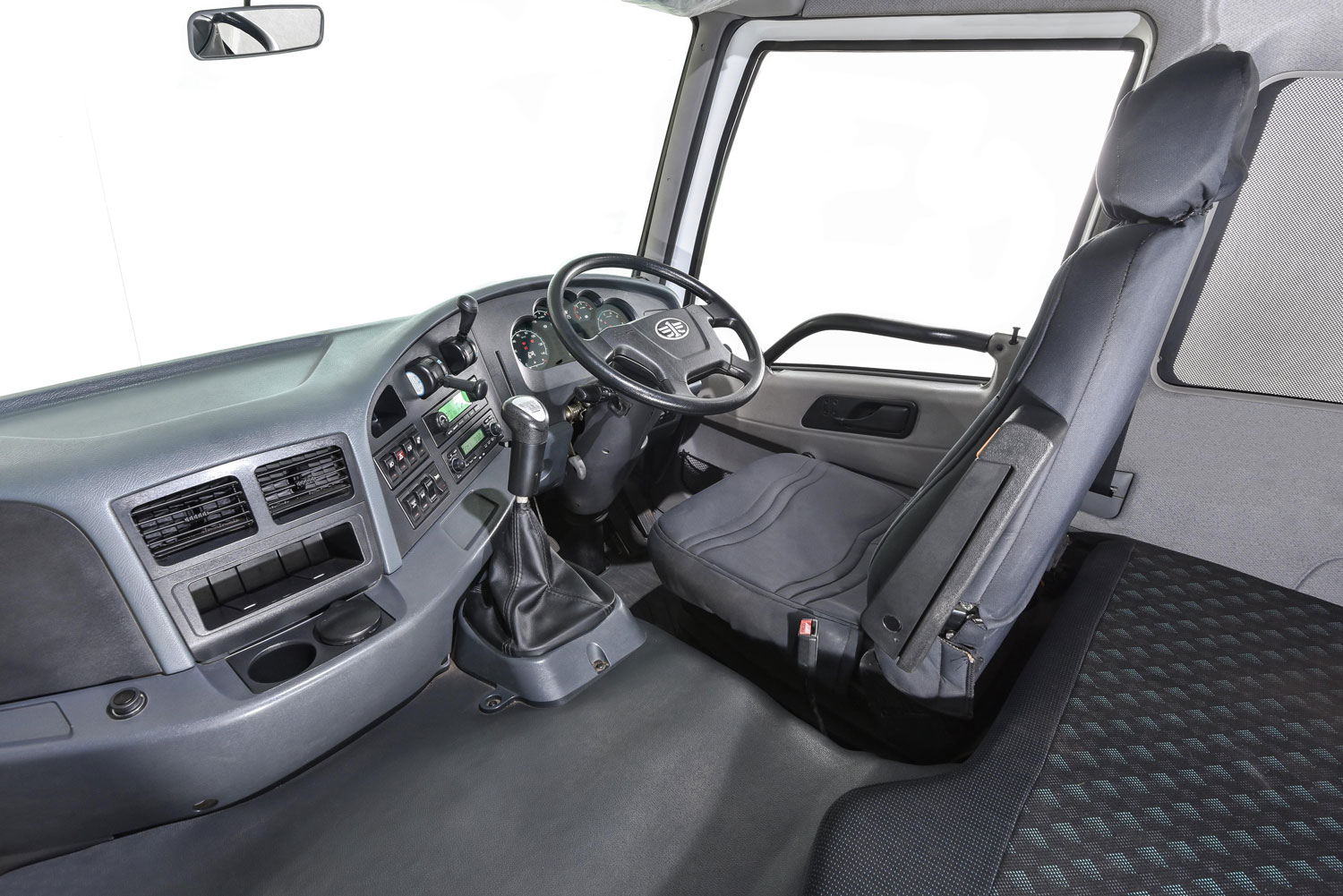

- Full Floating Extended High Roof Cab with innovative Flat Floor Design for optimal comfort
- 6 cylinder in line, water cooled, turbo charged & intercooled

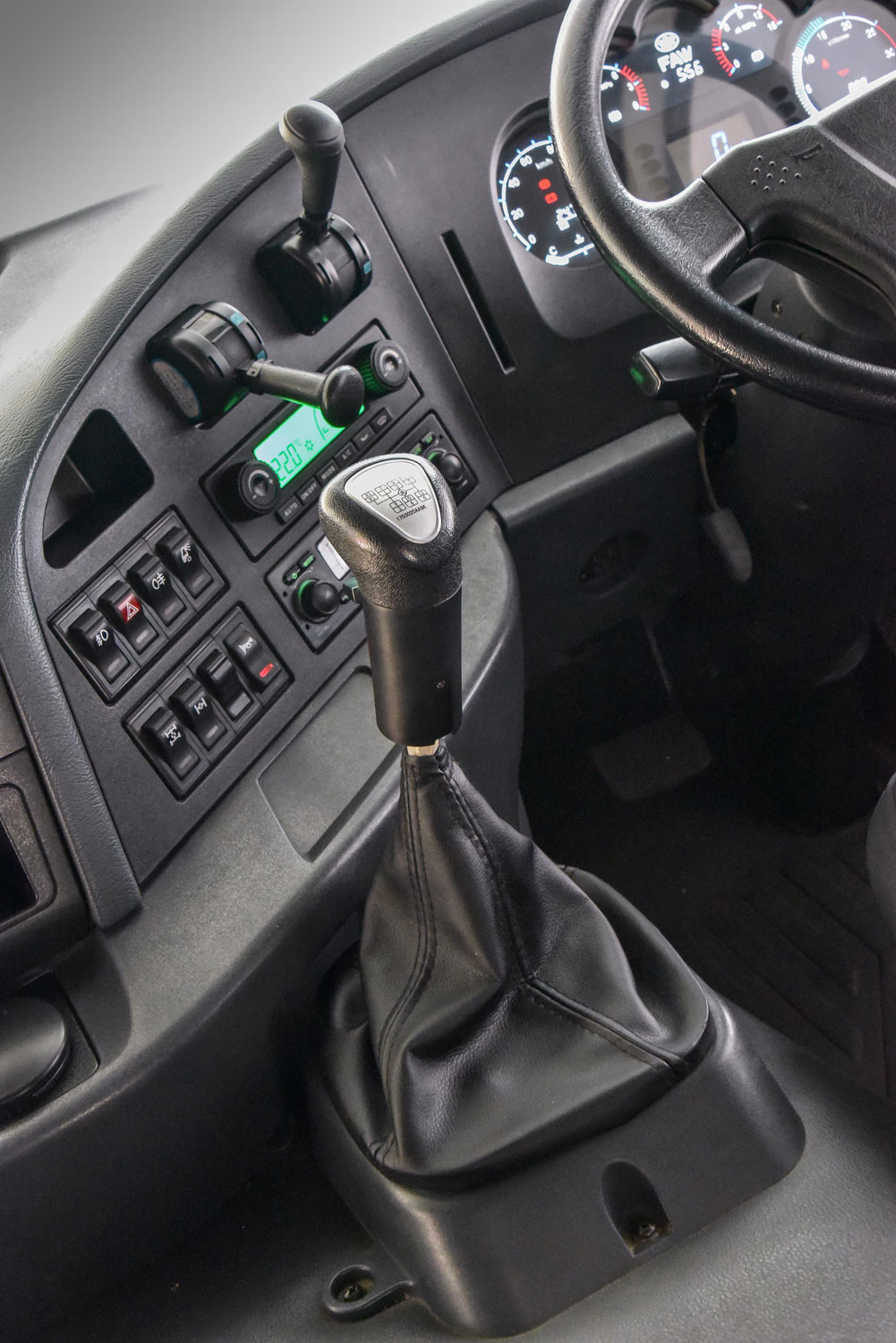

- 12 Speed AMT with Intarder Transmission
- Full Air - Dual Circuit with ABS
- Front and Rear Suspension: Parabolic Leaf Springs with Double Acting Shock Absorbers
- Equipped with China's most fuel efficient engine
Discover the Highlights
Specifications
JH6 33.460 FT AMT
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras

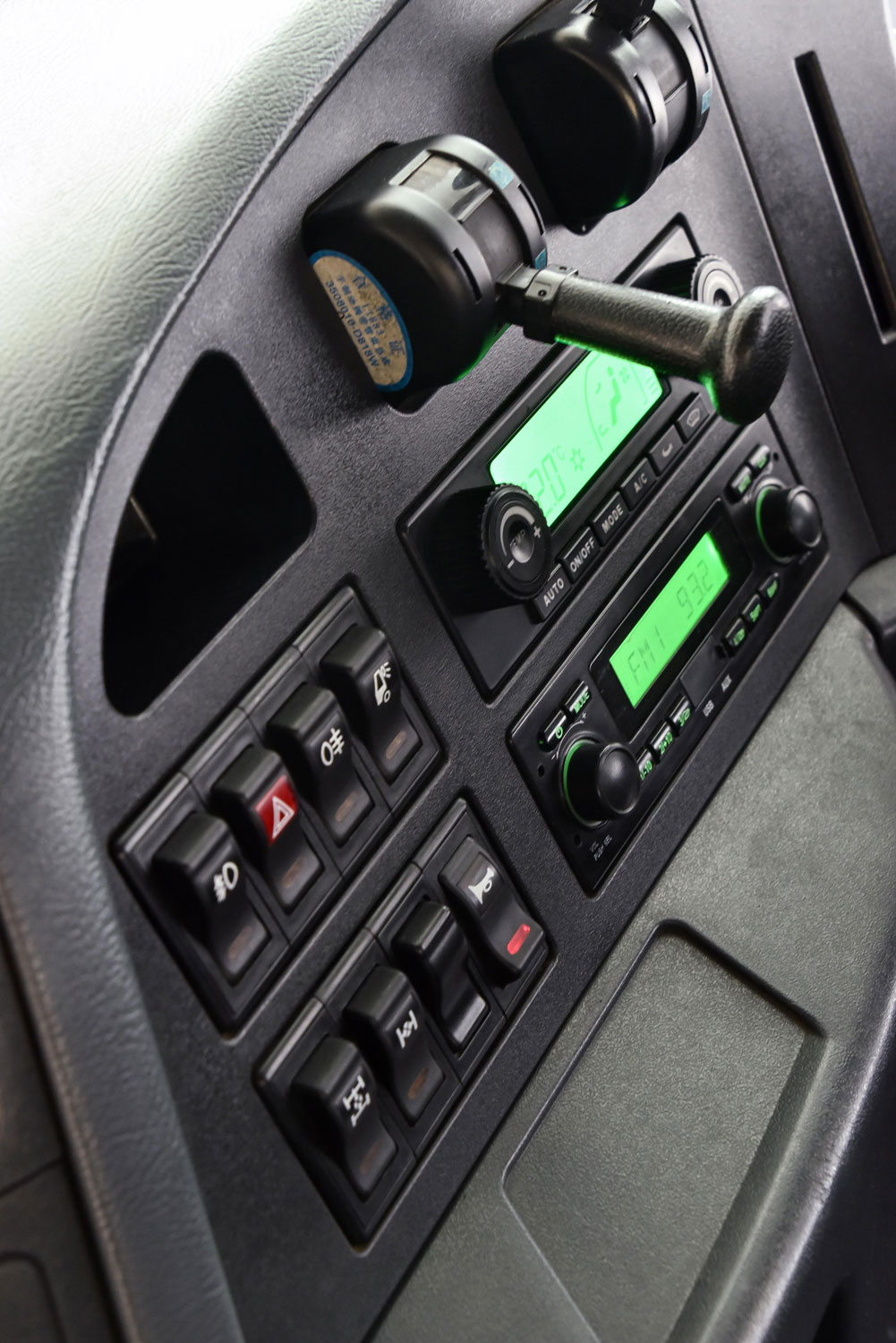

Sleeper Cab with Aircon, Radiowith USB, Suspension seat
ENGINE
Make & Model
CA46DM2-46
Capacity
11 040 cm3
Layout & Type
6 cylinder in line, water cooled,turbo charged & intercooled
Emissions Standard
Euro III
Power @ r/min (Kw)
338 @ 1 900rpm
Torque @ r.min (Nm)
2 150 from 1 000 to 1 400rpm
TRANSMISSION
Make & Model
FAST F12JZ26A
Type
12 Speed AMT with Intarder
Forward Ratios
12.26, 9.56, 7.36, 5.73, 4.52,3.52, 2.71, 2.11, 1.63, 1.28, 1.00,0.78
Reverse Ratio
12.28, 8.79
CLUTCH
Diameter
430 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted

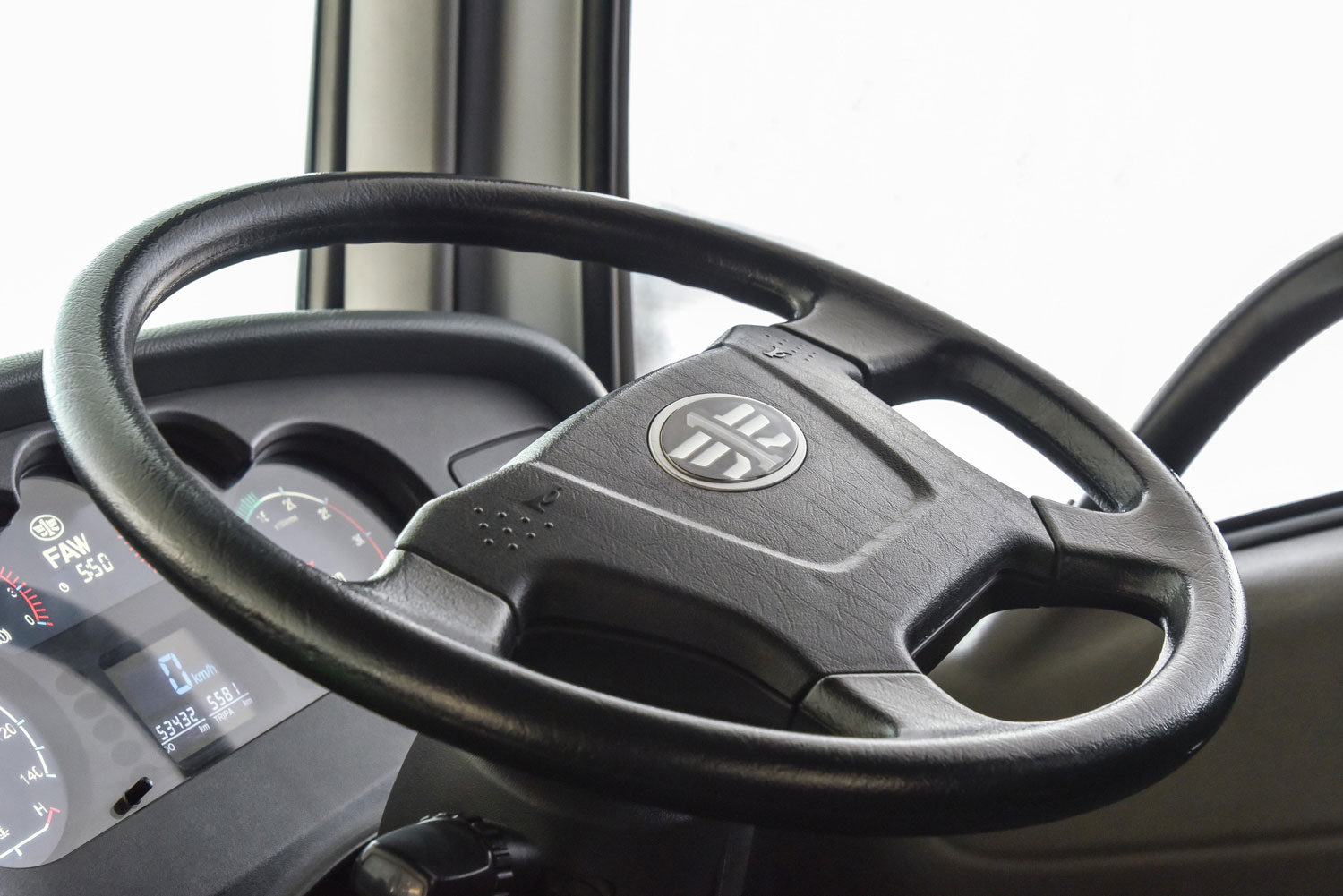

STEERING
Gear Ratio
23:1
Type
Recirculating Ball
Operation
Hydraulic Power Steering
PERFORMANCE
Gradeability @ V
Max 30%
Permissible Road Speed
80km/h
AXLES
Front Axle
I- Beam section (Forged Steel)
Rear Axle - Gearing Type
Full Floating- Single Reduction with inter-axle & inter-wheel
Rear Axle Ratio
4.1:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brake/Rear Booster
Auxiliary Braking
Engine Brake & Exhaust Brake
FUEL TANK
Number
Two
Total Capacity
450+450 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Single Line/Negative Grounded
Generator
2800W
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Parabolic Leaf Springs with Double Acting Shock Absorbers
Rear Suspension
Parabolic Leaf Springs with Double Acting Shock Absorbers
WHEELS
Tyre Size
315/80R22.5-20PR
Rim Size
9.00 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
33 700 kg
Manufacturer’s Gross Combination Mass (GCM)
62 200 kg
Manufacturer’s Front Axle Mass (GA Front)
7 700 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
26 000 kg
Permissible Gross Vehicle Mass (V)
25 700 kg
Permissible Gross Combination Mass (D/T)
56 000 kg
Permissible Front Axle Mass (A Front)
7 700 kg
Permissible Rear Axle Mass (A Rear)
18 000 kg
Unladen Front Axle Mass (T Front)
4 505kg
Unladen Rear Axle Mass (T Rear)
4 300 kg
Unladen Mass Total (Tare)
8 805
DIMENSIONS
Wheelbase (WB)
3 300 + 1 350
Overall Length (OL)
6 860 mm
Cab Length (A)
2 065 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
3 910 mm
Front Overhang (D)
1 495 mm
Rear Overhang (ROH)
715 mm
Cab to Rear Axle (CA)
4 152 mm
Cab to End of Chassis (F)
4 795 mm
Minimum Turning Radius
7 500 mm
Minimum Turning Diameter
15 000 mm
Ground Clearance
222 mm
Track - Front
2 042 mm
Track - Rear
1 852 mm
Chassis Outer Width
800 mm
Chassis Inner Width
640 mm
