Model

J5N 28.290FD

6x4 10m3 TIPPER



Model J5N 28.290FD

Starting at R 1,019,000

  • Full Floating Ergonomically Designed Sleeper Cab with Reinforced Bumper
  • Weichai WP10 6 Cylinder In Line Turbo Charged and Intercooled Diesel Engine
  • FAW 9 Speed Fully Synchromeshed Manual Transmission
  • Full Air Dual Circuit WABCO Braking System with ABS
  • Standard Aircon, Radio and MP3 with USB
  • 10m3 Tipper Body- 850 High Strength Steel equipped for Construction Download Spec Sheet


Discover the Highlights

Retail Price

R 1,019,000

Fuel Economy Range

n/a

Seating

3

Engine Capacity

9.726 cm3

Transmission

9 Speed Manual Syncromesh

Fuel Type

Diesel

Download Brochure Book a Test Drive Payment Calculator


Specifications

J5N 28.290 FD

CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras

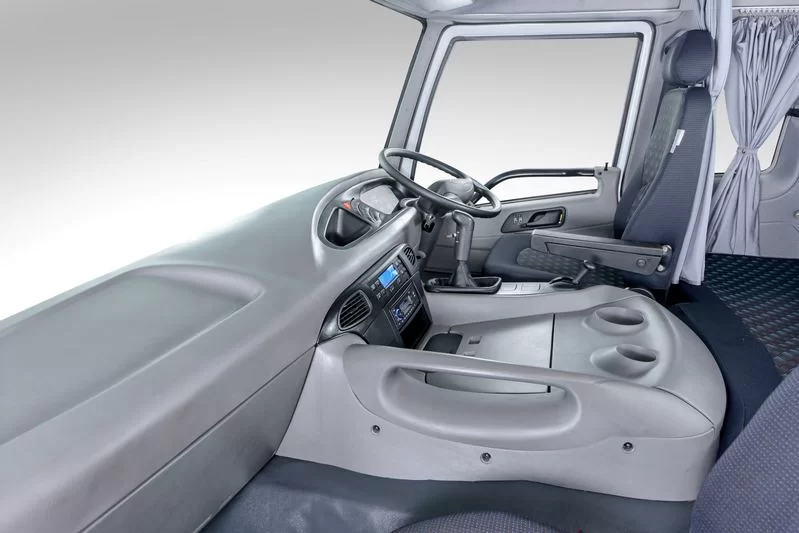

Sleeper Cab with Aircon, Radio with USB, Suspension seat
ENGINE
Make & Model
WP10.290E32
Capacity
9 726 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Power @ r/min (Kw)
213 @ 2 200rpm
Torque @ r.min (Nm)
1 160 @ 1 200 - 1 600
TRANSMISSION
Make & Model
FAW CA9TB160M
Type
9 Speed Manual Syncromesh
Forward Ratios
14.34; 10.04; 7.10; 5.05; 3.71; 2.70; 1.92; 1.36; 1.0
Reverse Ratio
8.63
CLUTCH
Diameter
430 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
23:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 36%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Single Reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brake/Rear Booster
FUEL TANK
Number
One
Total Capacity
400 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs
WHEELS
Tyre Size
315/80R22.5-18PR
Rim Size
9.00 X 22.5
Type
Tubeless Radial
Body Specification
Description
10m³ Tipper (Complete)
Material
4800*2300*1000; (floor 6mm, side4mm) 850 High Strength Stee
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
28 000 kg
Manufacturer’s Gross Combination Mass (GCM)
50 000 kg
Manufacturer’s Front Axle Mass (GA Front)
7 700 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
20 300 kg
Permissible Gross Vehicle Mass (V)
25 700 kg
Permissible Gross Combination Mass (D/T)
50 000 kg
Permissible Front Axle Mass (A Front)
7 700 kg
Permissible Rear Axle Mass (A Rear)
18 000 kg
Unladen Rear Axle Mass (T Front)
4 000 kg
Unladen Rear Axle Mass (T Rear)
4 300 kg
Unladen Mass Total (Tare)
8 300 kg
Body and Payload Allowance
17 400 kg
DIMENSIONS
Wheelbase (WB)
3 500 + 1 350
Overall Length (OL)
7 125 mm
Cab Length (A)
2 325 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
3 075 mm
Front Overhang (D)
1 375 mm
Rear Overhang (ROH)
900 mm
Cab to Rear Axle (CA)
4 100 mm
Recommended Body Length
4 800 mm
Cab to End of Chassis (F)
4 800 mm
Minimum Turning Radius
9 500 mm
Minimum Turning Diameter
19 000 mm
Ground Clearance
300 mm
Track - Front
1 914 mm
Track - Rear
1 847 mm
Chassis Outer Width
800 mm
Chassis Inner Width
640 mm
